Truck Tooling, Brake Lathe Accessories




Truck Tooling

TK-1

A. W143-1 Hubless adaptor 1 7/8'' bore, 6.500'' (2) B. BDL500-1 Cone 1 7/8'' bore, 4.000'' to 5.500''
J. BDL511-1 Bearing adaptor 1 7/8'' bore, 2.407'' to 2.781'' C. BDL128-3 Bushing 1'' to 1 7/8'' (2)
G. W108 Spring - - -

TK-2

H. BDL513-1 Bearing adaptor 1 7/8'' bore, 3.155'' to 3.529'' I. BDL512-1 Bearing adaptor 1 7/8'' bore, 2.781'' to 3.155''

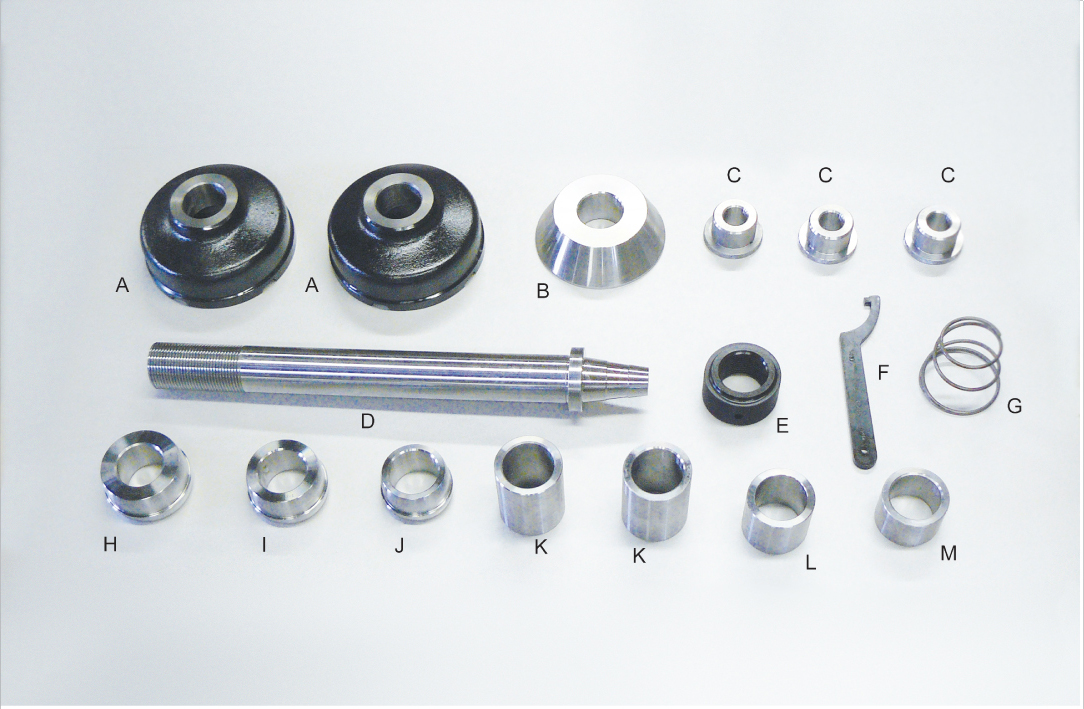

TK-1HD
(for models 1215 & 1115)

A. W143-1 Hubless adaptor 1 7/8'' bore, 6.500'' (2) B. BDL500-1 Cone 1 7/8'' bore, 4.000'' to 5.500''
C. BDL128-3 bushing 1'' to 1 7/8''(3) D. W158-1 Truck shaft 1 7/8 '' adaptor 1 7/8'' bore, 2.407'' to 2.781''
E. W160-1 Locking Collar 1 7/8 '' F. W233 Wrench 5/16 ''
G. W108 Spring J. BDL511-1 Bearing Adaptor 1 7/8" bore 2.407'' to 2.781''
K. W159-6 Spacer 1 7/8'' bore, 3'' long (2) L. W159-5 Spacer 1 7/8'' bore, 2'' long
M. W159-4 Spacer 1 7/8'' bore, 1 1/2'' long - - -

TK-2HD
(for models 1215 & 1115)

As above (TK-1HD with BDL512-1 and BDL513-1 bearing adaptors included).
