TK4-1, Brake Lathe Accessories

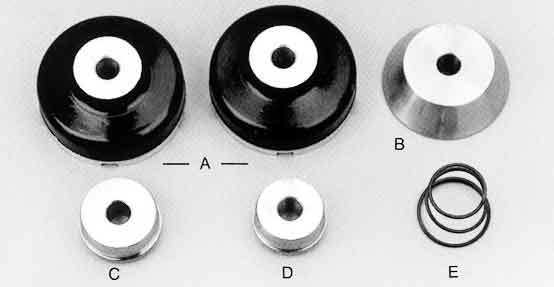

TK4-1, parts 1

This set consists of tooling designed to mount most 3/4 and 1 ton truck drums and rotors including 4 wheel drive on any 1'' arbor (not shown)

A. W143-2 Hubless adaptor, 1'' bore 6.500'' (2) B. BDL500-2 Cone 4.0'' to 5 1/2'', 1'' bore
C. W135 Bearing adaptor 3.155'' to 3.529'', 1'' bore D. W134 Bearing adaptor 2.781'' to 3.155'', 1'' bore
E. W108 Spring - - -

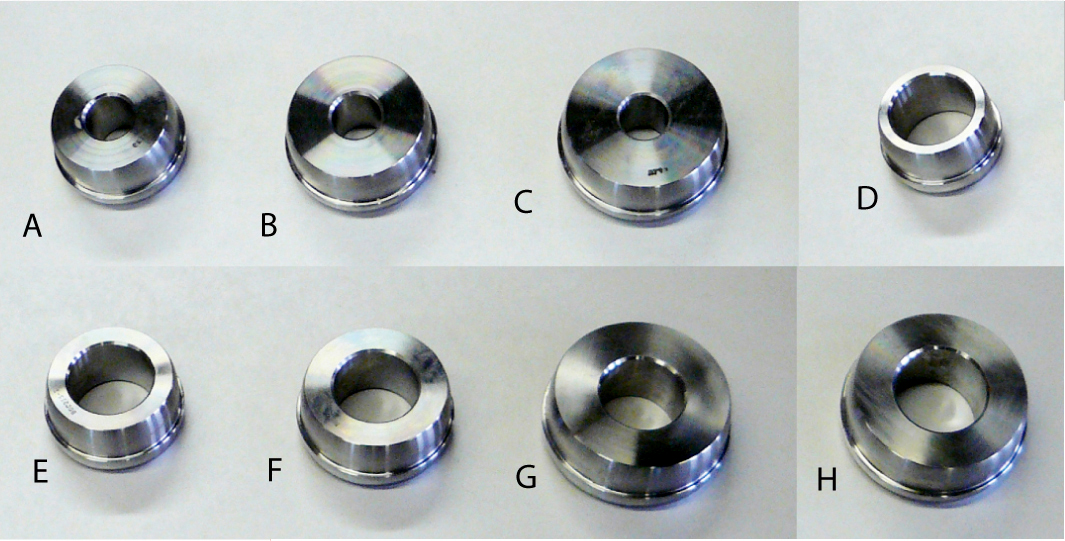

TK4-1, parts 2


Bearing Adaptors

A. W129 1'' bore, 2.407'' to 2.781'' B. W134 1'' bore, 2.781'' to 3.155''
C. W135 1'' bore, 3.155'' to 3.529'' D. BDL511-1 1 7/8'' bore, 2.407'' to 2.781''
E. BDL512-1 1 7/8'' bore, 2.781'' to 3.155'' F. BDL513-1 1 7/8'' bore, 3.155'' to 3.529''
G. W187 1 7/8'' bore, 3.529'' to 3.904'' H. W188 1 7/8'' bore, 3.904'' to 4.279''
