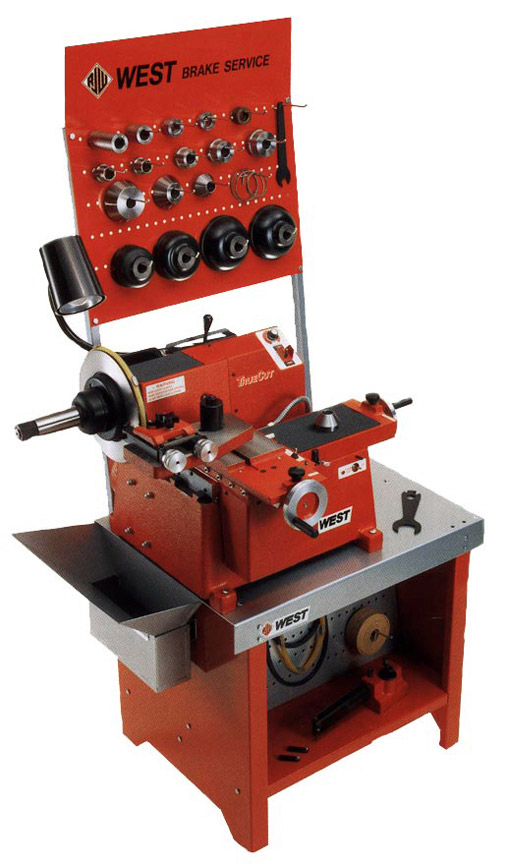

1115 HD TrueCut

Outstanding Features of the 1115HD to Accurately Resurface Automotive and Light Truck Rotors, Drums, and Flywheels :

• Heavy, thick ductile iron casting provides a rugged, reliable base for the 1115HD TrueCut.

• The 1115HD provides a "One Cut" finish. If specifications or operators prefer a rough cut before finishing, it is available simply by rotating a dial.

• Quick changeover from disc to drum tools in only seconds.

• The innovative design and tooling allows the 1115HD to be adapted easily to all existing and future machining applications.

• Drive shaft and arbor are supported by extra large tapered roller bearings. Bearings and complete drive train operate in an oil bath - no bushings or old fashioned sleeves to wear out.

• Simple arbor drive - only two gears.

• Individual high torque gear motors used for driving drum and rotor tool carriages. An electronic module measures and controls the carriage feed speed. By varying the torque to the feed motor a constant feed speed is held. This provides an even finish even through hard spots and large variations in the surface.

• Automatic shutoff of the tool carriages.

• Adjustable work light and top storage space for tools.

• The 1115HD has a complement of brake lathe tooling and accessories available for many special applications. See our Brake Lathe Accessories (BLA) catalog for details.

• CSA listed

1115HD TrueCut
